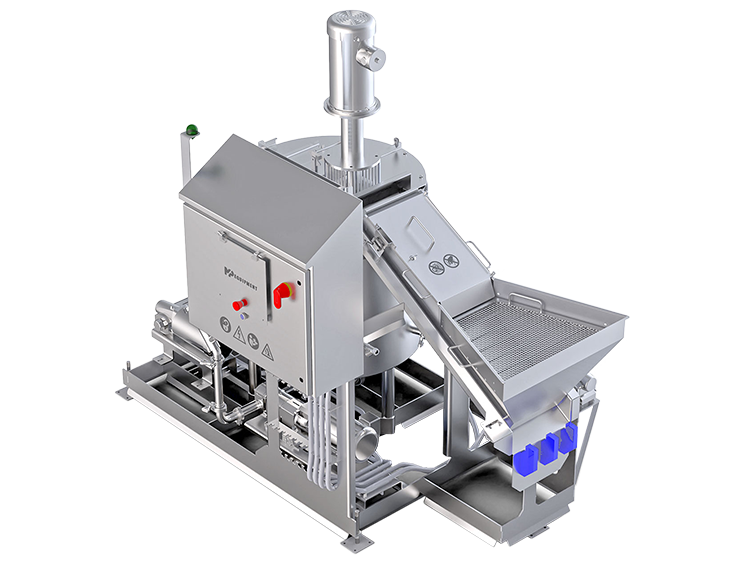

Models:

• MP410-50: 50 Gallon

• MP410-70: 70 Gallon​

Machine Features:

• Ultrasonic in-line viscometer controlling a wide range of viscosities with extremely tight tolerances. No calibration required. CIP capable

• Construction is all stainless steel frame with US standard fasteners, bearings, sprockets, belting and shafts with sanitary open frame design

• Fully automated controls using an AB PLC & color touchscreen for 100% automated control of batter mixing and monitoring

• Electrical control characteristics:

  • Automated start-up sequence for more consistent and quicker startups

  • Stainless steel sloped top NEMA 4X enclosures

  • Temperature monitoring in mix tank and supply water

  • Shut down feature that reduces batter waste as shutdown from approx. 65 gallons to as low as 5 gallons

  • Ethernet networking capability

• All stainless steel viscosity pump and motor with direct drive

• Stainless steel 2 HP mixer

• Sanitary stainless steel water piping

• Stainless steel feed pump and motor with direct drive are controlled using variable frequency drives for speed and flow control

• Ergonomically designed low profile batter hopper available in standard 34” load height with 100 lb. capacity

• Can produce batter with tolerances of less than one-third of a cup second, which equals 5-6 centipoise

• Stainless sanitary piping

• Out-of-spec alarm system monitoring temperature and motor overloads

• Perforated parts basket for all sanitary and pump parts

• High efficiency, stainless steel mix tank w/cooling jacket on exterior of side and bottom of tank (180 PSI A.S.M.E. Certified/Stamped)
